YHZS50 JS1000 Concrete Batching Plant Mobile Type With 50 M³/H Capacity

Brand Name : TARZAN

Model Number : YHZS50

Certification : ISO, CCC

Place of Origin : China

MOQ : 1 unit

Price : $52000-$65000/unit

Supply Ability : 300 units per month

Delivery Time : 15 days after receipt down payment

Packaging Details : Container

Product namne : concrete batch Plant

Type : Mobile type

Capacity : 50m3/h

Mixer : JS1000

Cement silo : 50T

Warranty : 12 months

Contact Now

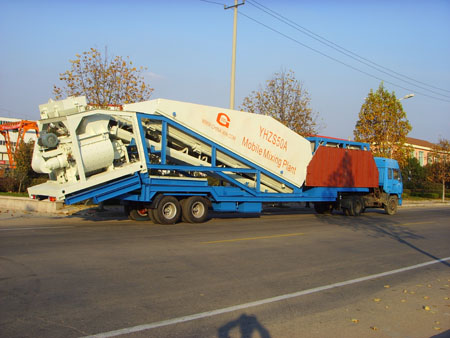

  YHZS50 Mobile Concrete Batching Plant with 50m3/h capacity





  3.General Technical Parameter
  Model YHZ50
  Productivity 50 m³/h

  Twin Shaft Mixer JS1000
  Mixer Volume 1 m³

  Mixer Power 30kw
  Max. Aggregate Size(broken stone/pebble) 60/80mm

  Loading Type of Aggregate to the Mixer Conveyor Belt
  Aggregate Storage Hopper 5m³ × 2

  Aggregate Weighing 4000kg±2%
  Cement Weighing 500kg±1%

  Water Weighing 250kg±1%

  Additive Weighing 30kg±1%
  Control Mode Full-automatic

  Discharge Height 3800mm
  Total Power 70kw

  Total Weight 19000kg
  Site Size (L X W X H) (at work) 18850 mm × 4150 mm × 8079mm

  Cement Screw LSY219
  Cement silo Bolted Type: 100T




4.Components list





1 JS1000 Concrete Mixer   1 Pc

2 PLD1600-2 Concrete Batching Machine 1 Pc

3 Water, Cement and Additive Weighing System 3 Pcs

4 Aggregate Supplying System   1 Pc

5 Air System Air Compressor 3kw 1 Pc

6 Dragged system     1 Pc

7 Control Room     1 Pc

8 One Unit of Spare parts   1 Pc

9 One set of Tools   1 Pc

Optional Parts

  Cement silo 50t Dismantle screw parts or Welded steel plate 1 Set

  Butterfly Valve Ø 300mm   1 Set

  Level Indicator     1 Set

  Pad         1 Set

5.Configuration List & Description
1.0 Twin shaft Mixer JS1000   1 Pc
1.1 Main Speed Reducer   1 Pc

1.2 Main motor       1 Pc

1.3 Oil supply system( Manual)   1 Pc

1.4 Pneumatic discharge system   1 Set

1.5 Legs and ladder     1 Pc

1.6 Walking platform and railing   1 Set

1.7 Frame         1 Set

2.0 Aggregate Supplying System   1 Set
2.1 Mixing Part Platform   1 Set

2.2 Large big belt conveyor   1 Set

2.3 Electrical drum     1 Set

2.4 Heavy vertical tensioning device 1 Set

2.5 Sweeper         1 Set

2.6 Large angle belt conveyor, interior girth 1 Set

3.0 Aggregate Batching System PLD1600-2 1 Set
3.1 Belt Width 800     1 Pc

3.2 Motor 7.5kw 1.6m/s   1 Pc

3.3 Measuring Hopper 2500L   1 Pc

3.4 Storage hopper 4*5m3   1 Pc

3.5 Discharge Gate     2 Pcs

3.6 Vibrator 0.37kw     2 Pc

3.7 Cylinder 4V210-8   2 Pcs

3.8 Sensor 1000kg     2 Sets

4.0 Water System Measuring Hopper 250kg 1 Pc
4.1 Sensor 300kg   2 Sets

4.2 Submersible pump   1 Pc

4.3 Manual butterfly valve DN50-125 1 Set

5.0 Cement And Fly Ash Measuring Hopper 500kg 1 Pc
5.1 Sensor 500kg     3 Pcs

5.2 Solenoid valve 4V210-8   1 Pc

5.3 Vibrator         1 Pc

5.4 Pneumatic butterfly valve   1 Pc

6.0 Additive Measuring Hopper 25kg 1 set
6.1 Sensor 50kg   1 pcs

6.2 Pneumatic butterfly valve Dg50 1 pc

6.3 Solenoid valve 4V210-8 1 Pc

7.0 Air System Air Compressor 5.5kw 1 Set
7.1 Pneumatic components 1 Set

7.2 Electrical Component 1 Set

7.3 φ12PU Pipe several meters 1 Set

8.0 Control System 1 Pc
8.1 Control Computer 1 Pc

8.2 Control Platform 1 Pc

8.3 Control Software 1 Pc

8.4 Electrical Component 1 Pc

8.5 Room Structure 1 Pc

8.6 Control Room 1 Pc

9.0 Dragged system 1 Pc
9.1 Steering gear 1 Pc

9.2 Trailer   1 Pc

9.3 Rear axle and shock absorption 1 Pc

9.4 Braking systems, the brake turn indicators 1 Pc

6.Spare Parts List
  1 Middle blade of mixer 2 Pc

  2 Scaleboard for mixer drum 1 Pc

  3 Control system for water supply 2 Pcs

  4 AC 220 relay 1 Pc

  5 Oil sealing for mixer shaft end 1 Pc

  6 DC24V 2 Pcs

  7 Oil lubricator 1 set
